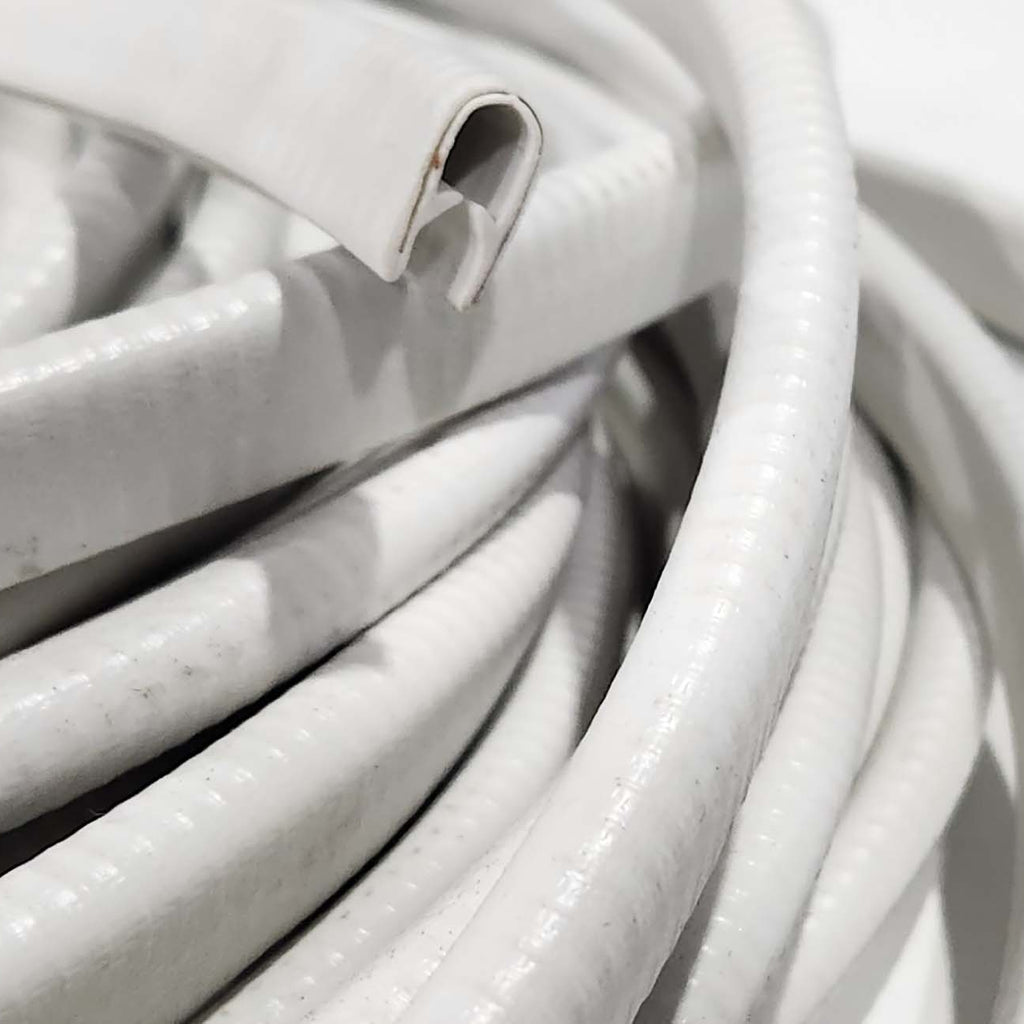

Pinchweld or edge moulding as it is often called is a PVC coated material with a standard metal insert. Purposely designed to snuggly fit over edges with a sharp or raw edge and provide a well fitted form of protection. The edge protector provides a neat finish to those sharp or raw edges where two metal point meat on various applications, including auto or even around the home.
The plus to the Pinchweld is due to the small metal clips encased in the extrusion, you do not require glue to affix the product as it will grip on to the metal itself.

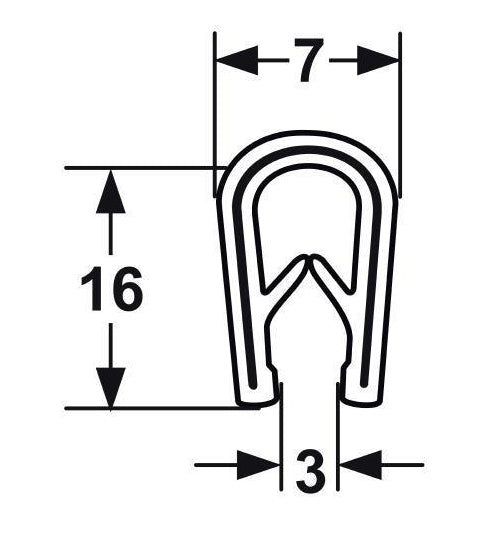

The 66-8296W Pinchweld is available in white only with a grip range of 2.0 - 5.0mm, its height at shortest point is 16mm, the width at the widest point is 7mm while the width at the narrowest point is 3mm.
